Description

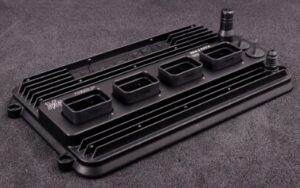

It’s here! The Generation 2 MaxxECU! The first of the GEN 2 out of the gates, the MaxxECU RACE GEN2

The MaxxECU brand, has fast become my favourite ECU manufacturer. We install and tune these daily here at the ‘Tuningshed’. I’ve literally spent hours on the dyno, tuning them. We’ve installed countless setups too.

We can offer advice on ECU selection, and even with setup and first start. Best of all, we can tune the vehicle for you too.

Included within the kit:

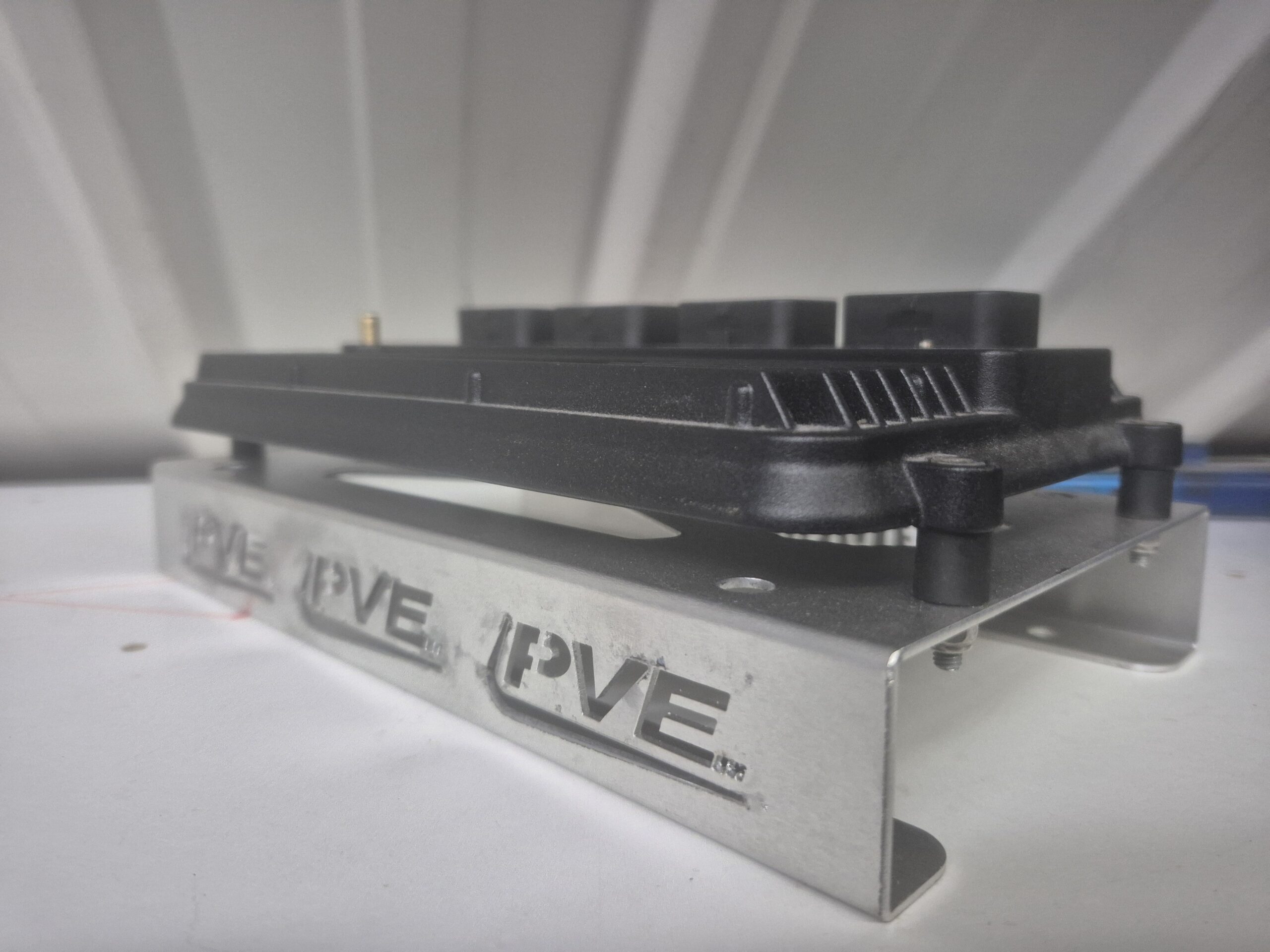

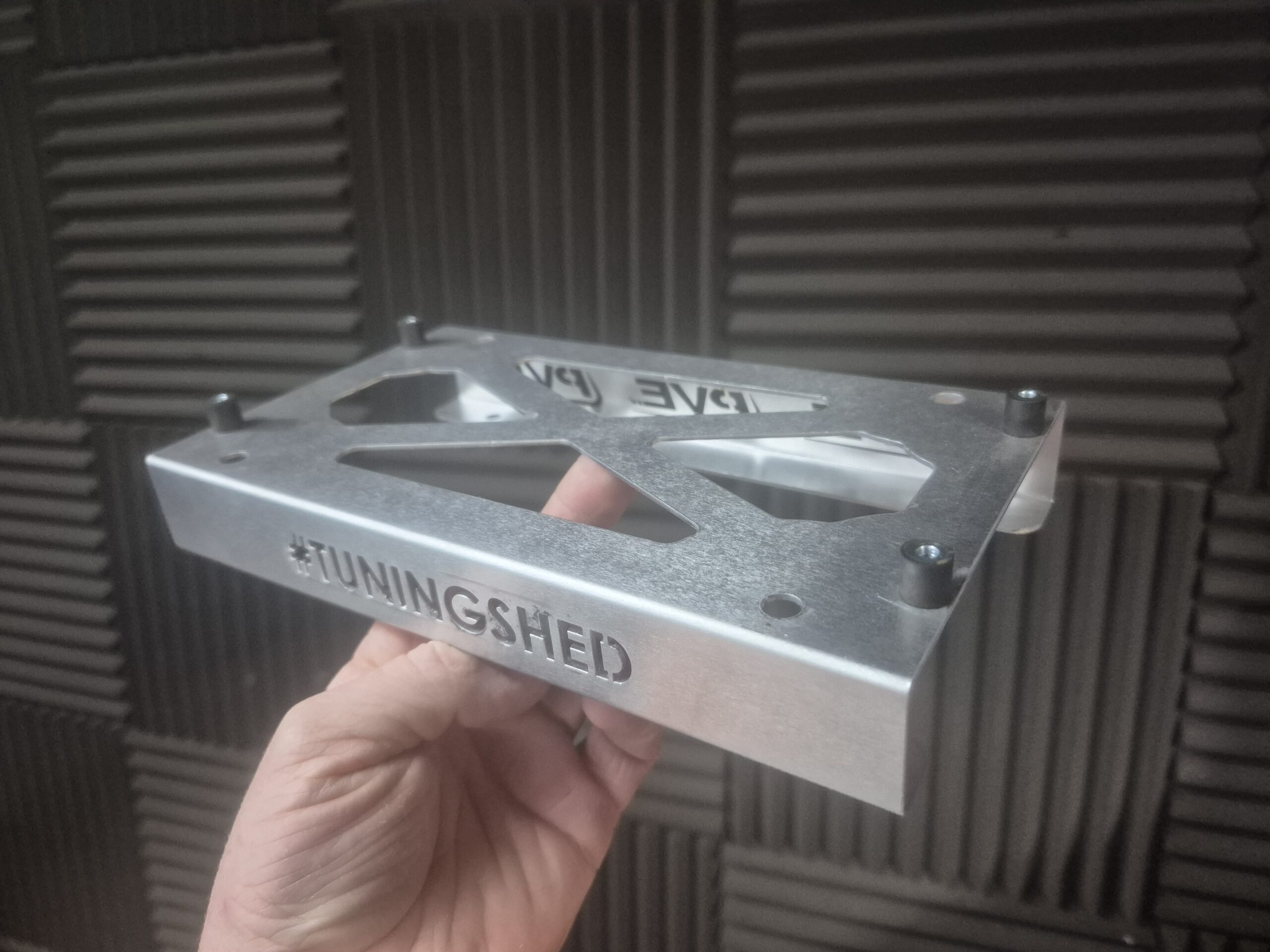

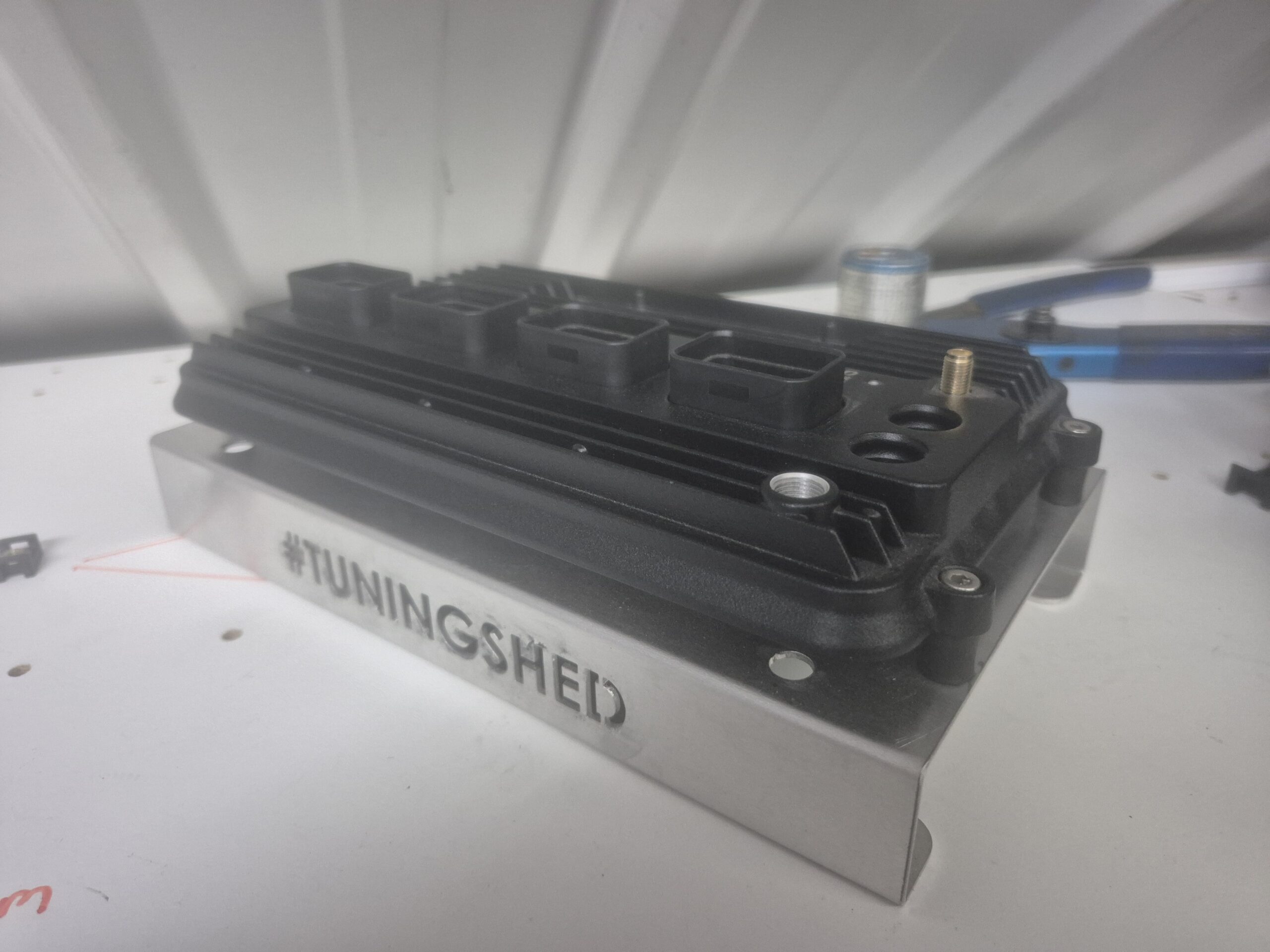

MaxxECU Race & Limited time only free PVE MaxxECU Race Alluminium Mount Bracket

Selected features

• • Volumetric efficiency fuel tuning
  • Boost control (triple stage)
  • Launch Control
  • Anti-Lag with cooldown features
  • Traction and power management features
  • Shift Cut and sequential gearbox control
  • Flex Fuel
  • Nitrous with purge and multiple stage control
  • Knock control
  • VANOS / VVTi variable cam timing
  • Auto Transmission (8HP, 4l60/65/80/85)
  • OEM CAN Integrations
  • DSG / DCT / 8HP CAN Gearbox Control
  • Internal logging up to 1000hz
  • Waterproof to IP68
  • Built in 550kpa / 80psi Map Sensor
  • 16 Injector
  • 12 Ignition
  • 16 GP Outputs
  • 8 Pulse inputs
  • 24 Analogue inputs
  • 8 – Built in EGT
  • Dual Wideband (LSU4.2 / 4.9 / 5.2)
  • Dual CAN-BUS
  • Dual Knock
  • Dual USB-C
  • Wi-Fi & Bluetooth
  • Alluminium Case

Target engines of MaxxECU RACE

All 1-12 cylinder engines (2/4-stroke)
Up to 12 cylinders fully sequentially
Up to 12 cylinders maximum in wasted spark

MaxxECU RACE GEN 2 inputs

• 8 Pulse inputs (VR/HALL) 2 with selectable 5/12v supply
• 24 Analogue inputs (selectable pullups)
• 8 Built in Exhaust Gas Temperature Inputs (K-Type)
• Built in Dual Wideband (LSU 4.2, 4.9 & LSU5.2 support)
• Dual Knock Sensor Input

MaxxECU RACE outputs

• 16 Injectors (Peak-Hold / Low Impedance) / GP Outputs
• 12 IGN / GP Outputs (Selectable 5v / 12v / GND)
• 8 GP Outputs (GND)
• 4 GP Outputs (+12V)
• 4 GP Outputs (H-Bridge / E-Throttle)

MaxxECU RACE technical

• Superseal 1.0 Connectors
• Built in 550kpa / 80Psi Map Sensor, user serviceable
• Built-In accelerometer up to 8G
• ARM dual core CPU
• 6-22v operating range
• 16GB internal logging capacity, 1000hz, all 1600+ channels
• USB-C 280mbit/s (M-Tune PC Communication)
• USB-C 12mbit/s (Tablet / Charging)
• Wifi communication with MTune and MDash
• Dual CAN bus for expansion modules, OEM vehicle CAN OBD2, gearbox
• Resolution on ignition 0.1 degrees
• Resolution on injectors 0.001ms
• Performs fuel and igniton calculations 3,000 times per second
• 200hz sampling on all EGT inputs
• 2000hz sampling rate on analogue / digital inputs
• Weigth: 700g
• 240 x 138 x 35mm including protruding connectors
• Black powder-coated aluminium case
• All inputs / outputs safeguarded agains overvoltage / reverse polarity and short circuit

When ‘Backorder’ is stated, the Webshop will allow you order the item, but please allow 2-weeks for delivery. When ‘In Stock’ is stated, normally you will recieve your product within 2 working days.

Link to the MaxxECU Website for more information
